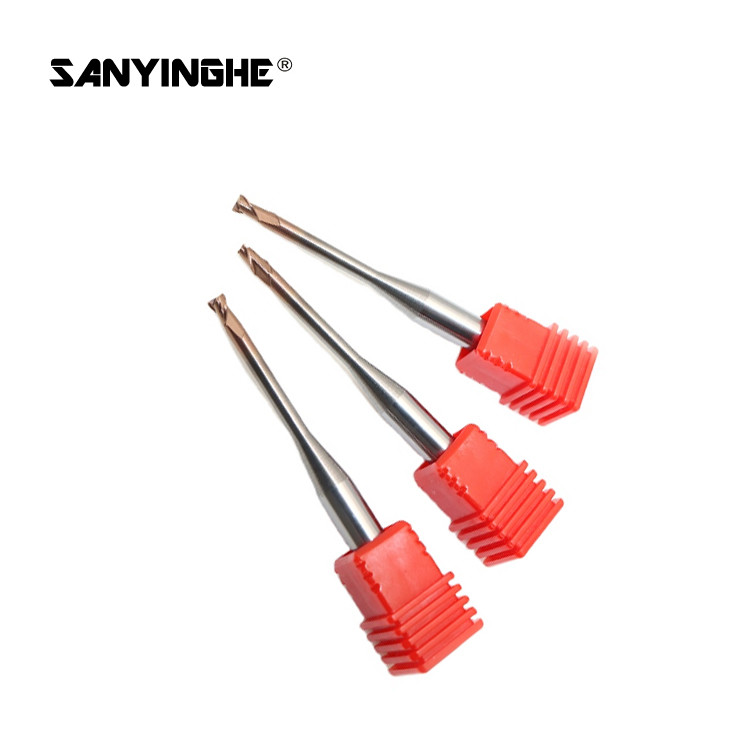

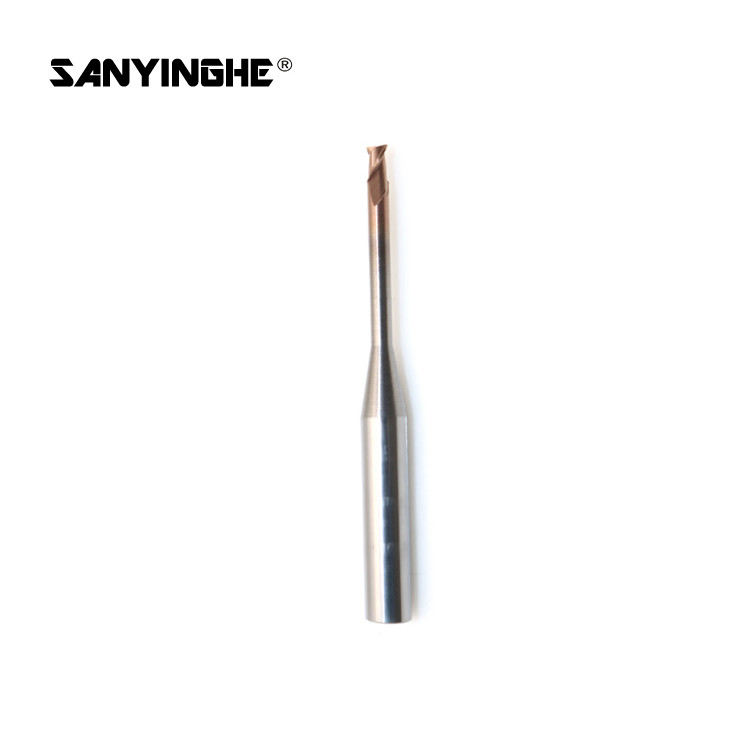

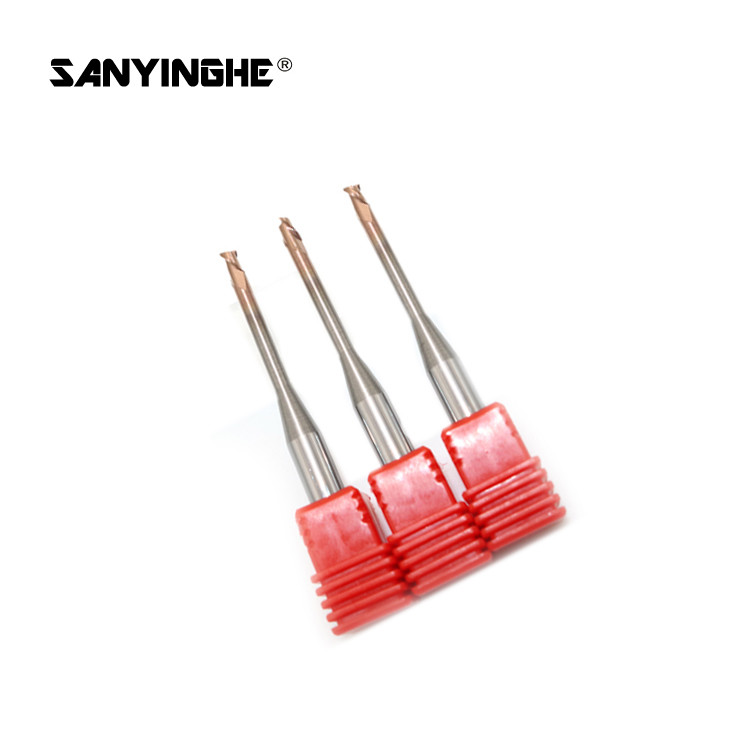

Two Flutes Cnc Carbide End Mill Flat Micro Milling Cutter For 0.1mm
Milling Cutter Tools Hard Steel
PRODUCT DESCRIPTION
1.Material : tungsten carbide
2.coating :TiAiN / AiTiN or as you request
3.Chemical Composition : WC 90.0%
4.Hardness (HV) : 1675
5.Compressive Strength(N/mm2) :5600
6.Transverse-rupture strength (N/mm2) :3600
7.Frature Toughness 10.0
Suitable for the various different material workpiece :
aluminum/steel/cast iron/ductile cast
iron/stainless/wood/PVC/acrylic and etc.
Product Name | Carbide End Mills |
| Material | Carbide |
| Helix Angle | 10degree,15degree,25degree,35degree,45degree,55degree |
| Size | Metric & Inch Size Based On Your Requirement |
| HRC | 45/55/58/60/65/70 |
| Features | Steel, Stainless Steel, Die Steel, Mould Steel, Carbon Steel, Cast
Iron, Copper, etc. |
NO | Specification | Cutting Dia | Helpful Length | Shank | Total Length | Flute |
1 | D0.3*2/3/4*D4*50*2T | 0.3 | 2/3/4 | 4 | 50 | 2T |
2 | D0.4*2/3/4/5/6*D4*50*2T | 0.4 | 2/3/4/5/6 | 4 | 50 | 2T |
3 | D0.5*2/3/4/6/8*D4*50*2T | 0.5 | 2/3/4/6/8 | 4 | 50 | 2T |
4 | D0.6*2/3/4/6/8*D4*50*2T | 0.6 | 2/3/4/6/8 | 4 | 50 | 2T |
5 | D0.7*3/4/6/8/10*D4*50*2T | 0.7 | 3/4/6/8/10 | 4 | 50 | 2T |
6 | D0.8*3/4/6/8/10*D4*50*2T | 0.8 | 3/4/6/8/10 | 4 | 50 | 2T |
7 | D0.9*3/4/6/8/10*D4*50.2T | 0.9 | 3/4/6/8/10 | 4 | 50 | 2T |
8 | R0.15*2/3/4*D4*50*2T | 0.3 | 2/3/4 | 4 | 50 | 2T |
9 | R0.2*2/3/4/5/6*D4*50*2T | 0.4 | 2/3/4/5/6 | 4 | 50 | 2T |
10 | R0.25*2/3/4/6/8*D4*50*2T | 0.5 | 2/3/4/6/8 | 4 | 50 | 2T |
11 | R0.3*2/3/4/6/8*D4*50*2T | 0.6 | 2/3/4/6/8 | 4 | 50 | 2T |
12 | R0.35*3/4/6/8/10*D4*50*2T | 0.7 | 3/4/6/8/10 | 4 | 50 | 2T |
13 | R0.4*3/4/6/8/10*D4*50*2T | 0.8 | 3/4/6/8/10 | 4 | 50 | 2T |
14 | R0.45*3/4/6/8/10*D4*50.2T | 0.9 | 3/4/6/8/10 | 4 | 50 | 2T |
FAQ
1. Who are we?
Sanyinghe is professional cutting tool supplier founded in 2014.
Sanyinghe has a excellent teams in designing and manufacturing.
Welcome to contact with us, we can meet all your requirement.
2. How can we guarantee quality?
We own optimized design concept advanced testing equipment and
strict production process, so we can guarantee quality steadily.
3. What can you buy from us?
We can provide you tungsten carbide end mills, tungsten carbide
indexable inserts, cermet (metal ceramic) indexable inserts,
tungsten carbide or HSS drills, and milling cutter head, milling
cutter arbor, cnc tool holder,and so on.
4. How is the packing?
All the packing will meet the strict export packing requirement, we
surely understand how important the beautiful and firm packaging to
the goods.
5. What is your terms of payment?
Generally by T/T, Paypal, Western Union. We support EXW, FOB, FCA,
CFR, CIF, and DDP Terms.
