3 Flute Aluminium Carbide Ball Radius End Mill Tungsten Steel Milling Cutter

    Buy cheap 3 Flute Aluminium Carbide Ball Radius End Mill Tungsten Steel Milling Cutter from wholesalers

    Buy cheap 3 Flute Aluminium Carbide Ball Radius End Mill Tungsten Steel Milling Cutter from wholesalers
    • Buy cheap 3 Flute Aluminium Carbide Ball Radius End Mill Tungsten Steel Milling Cutter from wholesalers
    • Buy cheap 3 Flute Aluminium Carbide Ball Radius End Mill Tungsten Steel Milling Cutter from wholesalers
    • Buy cheap 3 Flute Aluminium Carbide Ball Radius End Mill Tungsten Steel Milling Cutter from wholesalers
    • Buy cheap 3 Flute Aluminium Carbide Ball Radius End Mill Tungsten Steel Milling Cutter from wholesalers

    3 Flute Aluminium Carbide Ball Radius End Mill Tungsten Steel Milling Cutter

    Ask Lasest Price
    Brand Name : Sanyinghe
    Model Number : As your requirements
    Certification : ISO
    Price : Negotiation
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 8000Pcs/Month
    Delivery Time : 5-7 working days
    • Product Details
    • Company Profile

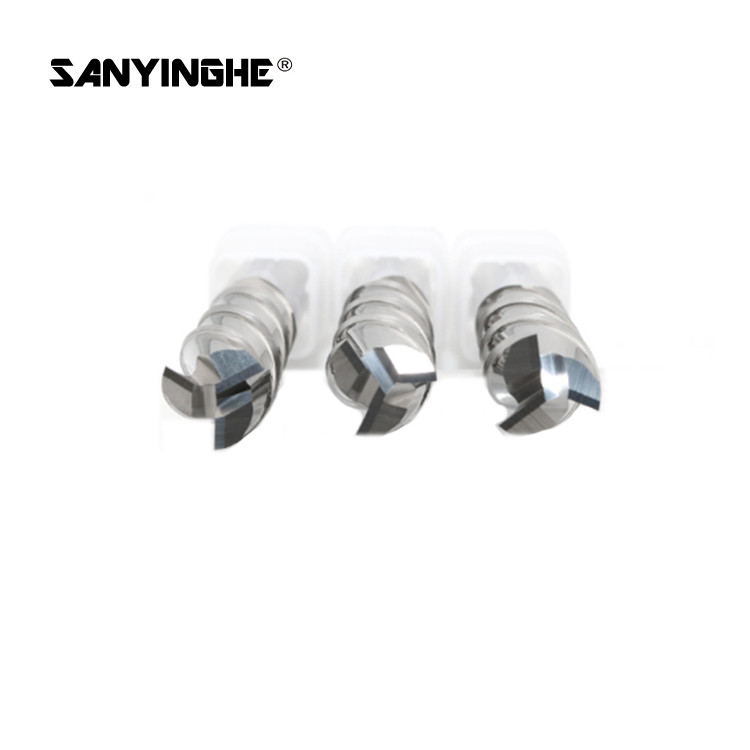

    3 Flute Aluminium Carbide Ball Radius End Mill Tungsten Steel Milling Cutter

    3 Flute Aluminium Carbide Full Ball Radius End Mill Tungsten Steel Milling Cutter For Aluminum

    Specifications:

    1. Material:Tungsten Carbide,Solid Carbide,Cemented Carbide
    2. HRC；45/55/58/60/65/70
    3. Product Type:Solid Carbide End Mills
    4. Coating:Altin, Tialn, Tisin, Tin, DLC,Nano, Diamond
    5. Helix Angle:10degree,15degree,25degree,35degree,45degree,55degree
    6. Size:Metric & Inch Size Based On Your Requirement
    7. Suitable For:Steel, Stainless Steel, Die Steel, Mould Steel, Carbon Steel, Cast Iron, Copper, etc.

    Super Raw Material
    Item Grade
    HRC45
    HRC55
    HRC60
    HRC65
    YG10X
    MH10FS&UH8(China)
    K44 & K40 (German)
    K44UF&K88UF(Cobalt collar)
    Details
    Grain size 0.7um
    Grain size 0.6um
    Grain size 0.5um
    Grain size 0.4um
    Co10%
    Co10%
    Co12%
    Co10%
    Flexural strength
    Flexural strength 4000N/mm2
    Flexural strength
    Flexural strength 4300N/mm2
    3320N/mm2
    4300N/mm2
    Super Coating
    Coating Classifying and Advantage
    Item
    Coating Type
    AlTin
    TiAlN
    TiSiN
    Sud
    Characteristic
    Hardness(HV)
    3300
    2800
    4300
    42(GPA)
    Thickness(UM)
    2.5-3
    2.5-3
    3
    3
    Oxidation Temp.
    900
    800
    1000
    1200
    Friction Coefficient
    0.35
    0.3
    0.25
    0.4
    Color
    Black
    Purple. Coating optional
    Bronze
    Blue
    Advantages
    High heat stability
    Normally cutting
    Suitable for heavy cutting, and high hardness cutting
    For high precision cutting
    Suitable for high speed, dry cutting
    Suitable for cutting mould steel, stainless
    Suitable for high hardness cutting, mould steel processing
    steel
    Most suitable for carbide cutting tools,turning insert

    Extended milling cutter,aluminum use end mills

    Size
    Blade diameter
    Handle diameter
    Blade length
    Total length
    Flutes
    50°2*D4*8*75*3T
    2
    4
    8
    75
    3T
    50°3*D3*12*75*3T
    3
    3
    12
    75
    3T
    50°3*D4*15*75*3T
    3
    4
    15
    75
    3T
    50°4*D4*15*75*3T
    4
    4
    15
    75
    3T
    50°5*D5*25*75*3T
    5
    5
    25
    75
    3T
    50°5*D6*25*75*3T
    5
    6
    25
    75
    3T
    50°6*D6*25*75*3T
    6
    6
    25
    75
    3T
    50°8*D8*30*75*3T
    8
    8
    30
    75
    3T
    50°3*D3*12*100*3T
    3
    3
    12
    100
    3T
    50°3*D4*15*100*3T
    3
    4
    15
    100
    3T
    50°4*D4*16*100*3T
    4
    4
    16
    100
    3T
    50°5*D5*30*100*3T
    5
    5
    30
    100
    3T
    50°5*D6*30*100*3T
    5
    6
    30
    100
    3T
    50°6*D6*30*100*3T
    6
    6
    30
    100
    3T
    50°7*D8*35*100*3T
    7
    8
    35
    100
    3T
    50°8*D8*35*100*3T
    8
    8
    35
    100
    3T
    50°9*D10*40*100*3T
    9
    10
    40
    100
    3T
    50°10*D10*40*100*3T
    10
    10
    40
    100
    3T
    50°11*D12*45*100*3T
    11
    12
    45
    100
    3T
    50°12*D12*45*100*3T
    12
    12
    45
    100
    3T
    50°6*D6*40*120*3T
    6
    6
    40
    120
    3T
    50°8*D8*45*120*3T
    8
    8
    45
    120
    3T
    50°10*D10*50*120*3T
    10
    10
    50
    120
    3T
    50°12*D12*55*120*3T
    12
    12
    55
    120
    3T
    50°14*D14*60*120*3T
    14
    14
    60
    120
    3T
    50°16*D16*60*120*3T
    16
    16
    60
    120
    3T
    50°18*D18*60*120*3T
    18
    18
    60
    120
    3T
    50°20*D20*60*120*3T
    20
    20
    60
    120
    3T
    50°4*D4*35*150*3T
    4
    4
    35
    150
    3T
    50°5*D6*45*150*3T
    5
    6
    45
    150
    3T
    50°6*D6*45*150*3T
    6
    8
    45
    150
    3T
    50°8*D8*50*150*3T
    8
    8
    50
    150
    3T
    50°10*D10*55*150*3T
    10
    10
    55
    150
    3T
    50°12*D12*60*150*3T
    12
    12
    60
    150
    3T
    50°12*D12*65*150*3T
    12
    12
    65
    150
    3T
    50°12*D12*75*150*3T
    12
    12
    75
    150
    3T
    50°14*D14*65*150*3T
    14
    14
    65
    150
    3T
    50°16*D16*65*150*3T
    16
    16
    65
    150
    3T
    50°18*D18*65*150*3T
    18
    18
    65
    150
    3T
    50°20*D20*80*150*3T
    20
    20
    80
    150
    3T
    50°25*D25*100*150*3T
    25
    25
    100
    150
    3T
    50°6*D6*100*200*3T
    6
    6
    100
    200
    3T
    50°8*D8*100*200*3T
    8
    8
    100
    200
    3T
    50°10*D10*100*200*3T
    10
    10
    100
    200
    3T
    50°12*D12*100*200*3T
    12
    12
    100
    200
    3T
    50°16*D16*100*200*3T
    16
    16
    100
    200
    3T
    50°18*D18*100*200*3T
    18
    18
    100
    200
    3T
    50°20*D20*100*200*3T
    20
    20
    100
    200
    3T

    3 Flute Aluminium Carbide Ball Radius End Mill Tungsten Steel Milling Cutter3 Flute Aluminium Carbide Ball Radius End Mill Tungsten Steel Milling Cutter3 Flute Aluminium Carbide Ball Radius End Mill Tungsten Steel Milling Cutter

    FAQ

    1. Who are we?

    Sanyinghe is professional cutting tool supplier founded in 2014. Sanyinghe has a excellent teams in designing and manufacturing. Welcome to contact with us, we can meet all your requirement.

    2. How can we guarantee quality?

    We own optimized design concept advanced testing equipment and strict production process, so we can guarantee quality steadily.

    3. What can you buy from us?

    We can provide you tungsten carbide end mills, tungsten carbide indexable inserts, cermet (metal ceramic) indexable inserts, tungsten carbide or HSS drills, and milling cutter head, milling cutter arbor, cnc tool holder,and so on.

    4. How is the packing?

    All the packing will meet the strict export packing requirement, we surely understand how important the beautiful and firm packaging to the goods.

    5. What is your terms of payment?

    Generally by T/T, Paypal, Western Union. We support EXW, FOB, FCA, CFR, CIF, and DDP Terms.
