    HSS Spiral Thread Tapping Tool Cutting Screw Threading Tap And Die Set

    Ask Lasest Price
    Brand Name : Sanyinghe
    Model Number : As your requirments
    Certification : ISO
    Price : Negotiation
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 10000 Piece/Pieces per Month
    Delivery Time : 5-30 Workdays
    • Product Details
    • Company Profile

    HSS Spiral Thread Tapping Tool Cutting Screw Threading Tap And Die Set

    HSS spiral thread machine taps cutting straight spiral flute screw tapping tool screw threading tap and die set


    Description:


    Size
    M2 To M52
    1/16BSW To 3/8-20BSF
    NO.1-64UNC To 3/8-16UNC
    NO.1-72UNF To 3/8-24 UNF.etc
    Measuring
    Metric and Inch
    Thread forms
    BSF/BSW/UNF/UNC/MM/BA/BSP/BSPT/ACME
    Surface finishing
    Bright finishing;Tin-coated; or customization
    Application
    Internal Thread Cutting
    Special Design
    Spiral point tap pushes chips
    ahead of tool to reduce clogging
    Working Material
    Hardened Steel, stainless steel,
    carbon Steel,general steel, iron,
    aluminum, copper and other metal steel
    Working Machine
    Lathe, Radial Drilling Machine,
    Bench Drill Machine, Pillar Drill Machine,
    Vertical Milling Machine
    Manufacturing process
    Cut Thread, Ground And Fully Ground

    Working Material, Different Kinds of Materials.

    Such as: Copper alloy , Aluminum alloy with lower strength and better plasticity.

    High Durability, Long life.

    Used:Drilling machines, tapping machines, automatic machine tools, machining centers, CNC or milling machines etc


    Product nameHSS Screw Thread Tap
    SizeM2-M30 Or Customize
    TypeScrew Thread Tap
    Applicationspiral flute for the blind hole, spiral pointed tap for the through hole
    Working machineLathe, Radial Drilling machine, Bench Drill Machine, Pillar Drill machine, Vertical Milling machine

    Working Material:

    HSS M2 works on Steel, Alloy steel, Carbon steel, Cast iron, Cooper, Aluminum, etc.

    HSS M35 works on Stainless steel, High temperature Alloy Steel, Titanium Alloy, High Strength Steel, Carbon Fiber Composite material and so on.

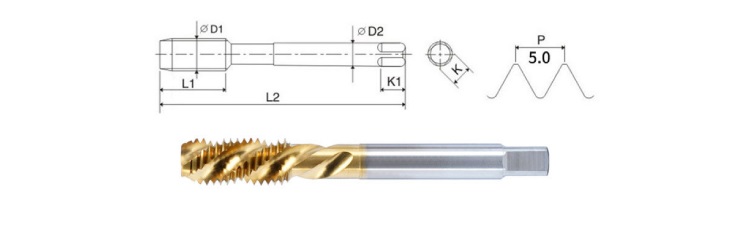

    Item
    Pitch
    Total Length
    Threading Length
    Shank Diameter
    M2
    0.4
    44
    8.5
    3
    M2.5
    0.45
    48.5
    10
    3
    M3
    0.5
    48.5
    11.5
    4
    M4
    0.7
    55
    13.5
    5
    M5
    0.8
    63
    17
    5.5
    M6
    1
    65
    20
    6
    M8
    1.25
    70
    23
    6.1
    M10
    1.5
    75
    35
    7
    M12
    1.75
    82
    30.5
    8.5
    M14
    2
    88
    31
    10.5
    M16
    2
    95
    32
    12.5

    HSS Spiral Thread Tapping Tool Cutting Screw Threading Tap And Die SetHSS Spiral Thread Tapping Tool Cutting Screw Threading Tap And Die SetHSS Spiral Thread Tapping Tool Cutting Screw Threading Tap And Die Set

    Other Thread Size is Available, Please Contact Us to Learn More Details!
