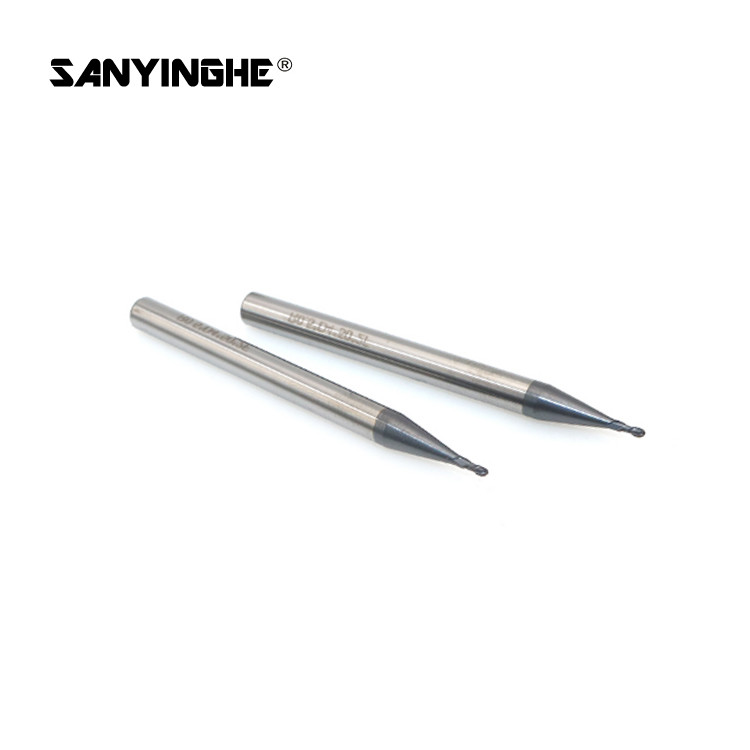

HRC50 2 Flute 0.3mm Micro Ball Nose Milling Cutter Cnc Machine
Round Head End Mill For Metal Engraving Tools
PRODUCT DESCRIPTION
1.Blade Point
Blade belt: double blade belt design is adopted to determine a more
wear-resistant edge.It adopts a blade design suitable for
high-speed cutting,with a 2-blade edge and excellent chip removal.
2.Mirror chip removal slot
High capacity chip removal with strong cutting,smooth cutting
discharge,can achieve high effiency machining.
3.Chamfering
Perfect chamfering,easy and fast installation chuck,high gloss
knife body import essential features.
Product Name | Carbide End Mills |
| Material | Carbide |
| Coating | AITiN |
| Color | Copper Color |
| Processing Objects | Carbon Steel |
| Features | Suitable for processing ordinary steel andcastiron materials. |
NO | Specification | Cutting Dia | Helpful Length | Shank | Total Length | Flute |
1 | D0.3*2/3/4*D4*50*2T | 0.3 | 2/3/4 | 4 | 50 | 2T |
2 | D0.4*2/3/4/5/6*D4*50*2T | 0.4 | 2/3/4/5/6 | 4 | 50 | 2T |
3 | D0.5*2/3/4/6/8*D4*50*2T | 0.5 | 2/3/4/6/8 | 4 | 50 | 2T |
4 | D0.6*2/3/4/6/8*D4*50*2T | 0.6 | 2/3/4/6/8 | 4 | 50 | 2T |
5 | D0.7*3/4/6/8/10*D4*50*2T | 0.7 | 3/4/6/8/10 | 4 | 50 | 2T |
6 | D0.8*3/4/6/8/10*D4*50*2T | 0.8 | 3/4/6/8/10 | 4 | 50 | 2T |
7 | D0.9*3/4/6/8/10*D4*50.2T | 0.9 | 3/4/6/8/10 | 4 | 50 | 2T |
8 | R0.15*2/3/4*D4*50*2T | 0.3 | 2/3/4 | 4 | 50 | 2T |
9 | R0.2*2/3/4/5/6*D4*50*2T | 0.4 | 2/3/4/5/6 | 4 | 50 | 2T |
10 | R0.25*2/3/4/6/8*D4*50*2T | 0.5 | 2/3/4/6/8 | 4 | 50 | 2T |
11 | R0.3*2/3/4/6/8*D4*50*2T | 0.6 | 2/3/4/6/8 | 4 | 50 | 2T |
12 | R0.35*3/4/6/8/10*D4*50*2T | 0.7 | 3/4/6/8/10 | 4 | 50 | 2T |
13 | R0.4*3/4/6/8/10*D4*50*2T | 0.8 | 3/4/6/8/10 | 4 | 50 | 2T |
14 | R0.45*3/4/6/8/10*D4*50.2T | 0.9 | 3/4/6/8/10 | 4 | 50 | 2T |
FAQ
1. Who are we?
Sanyinghe is professional cutting tool supplier founded in 2014.
Sanyinghe has a excellent teams in designing and manufacturing.
Welcome to contact with us, we can meet all your requirement.
2. How can we guarantee quality?
We own optimized design concept advanced testing equipment and
strict production process, so we can guarantee quality steadily.
3. What can you buy from us?
We can provide you tungsten carbide end mills, tungsten carbide
indexable inserts, cermet (metal ceramic) indexable inserts,
tungsten carbide or HSS drills, and milling cutter head, milling
cutter arbor, cnc tool holder,and so on.
4. How is the packing?
All the packing will meet the strict export packing requirement, we
surely understand how important the beautiful and firm packaging to
the goods.
5. What is your terms of payment?
Generally by T/T, Paypal, Western Union. We support EXW, FOB, FCA,
CFR, CIF, and DDP Terms.
