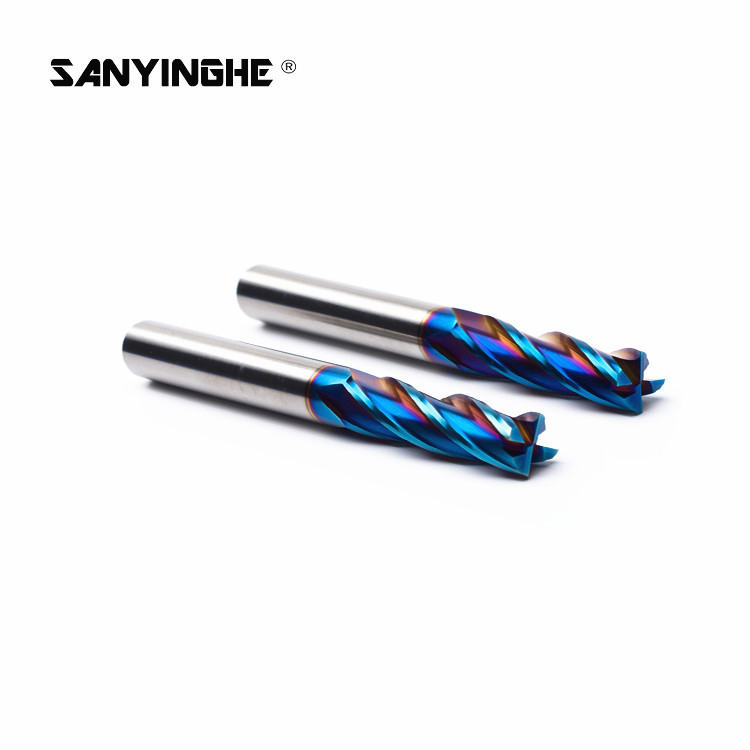

4 Flutes Solid Carbide End Mills

HRC65 4 Flutes solid carbide cnc flattened end mill nanocating milling cutter cutting tool

Blue nano series (four edge) ,preferred tungsten steel base metal.Fine grinding spiral groove with large core diameter design,smooth chip removal, avoid sticking to the knife, and greatly improve the production efficiency.
Sharp and wear-resistant, smooth chip removal.

The larger feed keeps the blade from collapsing,hardness up to HRA92,bending strength up to 4200+,work efficiency has been greatly improved.
The machining is smooth without cutter marks,passivation secondary edge,put it 200 times without notch.
Makes the milling cutter more wear-resistant and reduces workpiece burr during machining.
The chamfer layout of the handle is easier to clamp, and the quality of laser marking is guaranteed.
Suitable for Titanium Alloy, High-temperature Alloy, Harden material, etc.

Specifications:

Size	Blade diameter	Blade length	Handle diameter	Total length	Flute
1.0×3×4D×50L×4F	1	3	4	50	4F
1.5×4.5×4D×50L×4F	1.5	4.5	4	50	4F
2.0×6.0×4D×50L×4F	2	6	4	50	4F
2.5×7.5×4D×50L×4F	2.5	7.5	4	50	4F
3.0×9×4D×50L×4F	3	9	4	50	4F
3.0×9×3D×50L×4F	3	9	3	50	4F
3.0×12×3D×75L×4F	3	12	3	75	4F
3.0×15×3D×100L×4F	3	15	3	100	4F
3.5×10.5×4D×50L×4F	3.5	10.5	4	50	4F
4.0×12×4D×50L×4F	4	12	4	50	4F
4.0×16×4D×75L×4F	4	16	4	75	4F
4.0×20×4D×100L×4F	4	20	4	100	4F
5.0×15×5D×50L×4F	5	15	5	50	4F
5.0×20×5D×75L×4F	5	20	5	75	4F
5.0×25×5D×100L×4F	5	25	5	100	4F
5.0×15×6D×50L×4F	5	15	6	50	4F
6.0×18×6D×50L×4F	6	18	6	50	4F
6.0×24×6D×75L×4F	6	24	6	75	4F
6.0×30×6D×100L×4F	6	30	6	100	4F
8.0×24×8D×60L×4F	8	24	8	60	4F
8.0×30×8D×75L×4F	8	30	8	75	4F
8.0×35×8D×100L×4F	8	35	8	100	4F
9.0×27×10D×75L×4F	9	27	10	75	4F
10.0×30×10D×75L×4F	10	30	10	75	4F
10.0×40×10D×100L×4F	10	40	10	100	4F
12.0×35×12D×75L×4F	12	35	12	75	4F
12.0×45×12D×100L×4F	12	45	12	100	4F
14.0×45×14D×100L×4F	14	45	14	100	4F
16.0×45×16D×100L×4F	16	45	16	100	4F
18.0×45×18D×100L×4F	18	45	18	100	4F
20.0×45×20D×100L×4F	20	45	20	100	4F
6.0×45×6D×150L×4F	6	45	6	150	4F
8.0×50×8D×150L×4F	8	50	8	150	4F
10.0×60×10D×150L×4F	10	60	10	150	4F
12.0×60×12D×150L×4F	12	60	12	150	4F
14.0×70×14D×150L×4F	14	45	14	150	4F
16.0×75×16D×150L×4F	16	45	16	150	4F
18.0×75×18D×150L×4F	18	45	18	150	4F
20.0×75×20D×150L×4F	20	45	20	150	4F
25.0×45×25D×100L×4F	25	45	25	100	4F

4 Flutes Solid Carbide End Mills

Note:

These sizes we have in stock, and the other sizes,we can produce for you based on your requirements. Any need, please free comments.

Material

Tungsten carbide

HRC

HRC45/55/60/65°

Flexural Strength

2500-5000n/mm2

End Mill Flute

2/3/4/5/6

Length

50-200mm (As your requirement)

Diameter

1mm-50mm (As your requirement)

Coating

Tin, Altin, Nano, Tisin

Package

Protective sleeve+ plastic box+paper box
