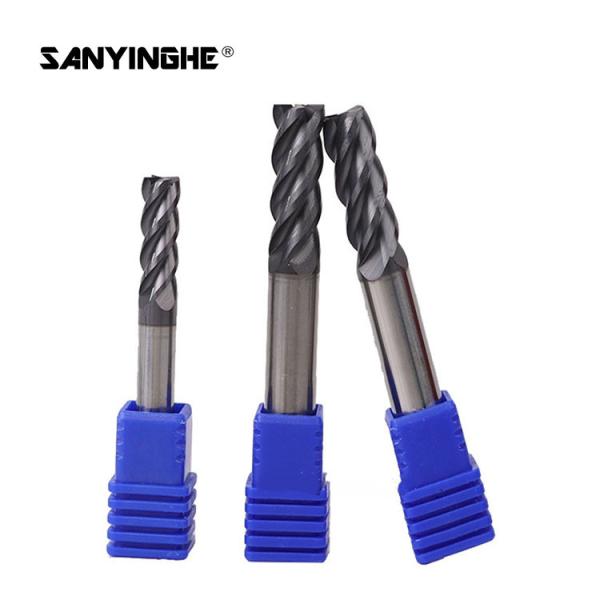

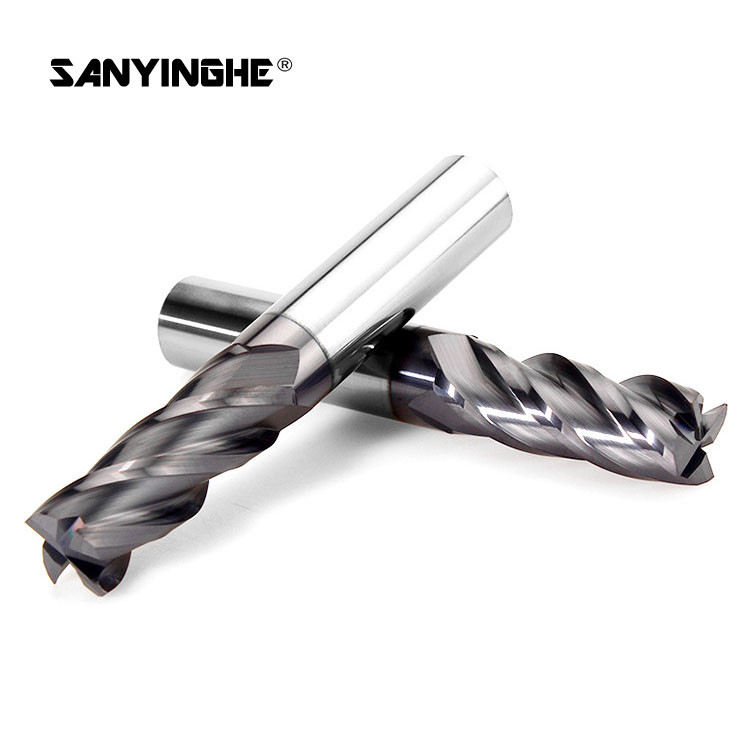

2 3 4 6 Flute Flat Milling Cutter Tungsten Carbide Square End Mill For Stainless Steel High Hardness Metal
PRODUCT DESCRIPTION
1. Customized Milling Cutter
2. The large core diameter is more stable,Large Chipremoval Groove
3. Wear- resitace coating
4. Bottom chamfering for easy handing.
5. Tungsten carbide material
High hardness, not easy to rust, high cost performance.
6. Cut a variety of materials, and can customize the milling cutter according to the needs of high-speed steel, alloy or ceramic.
| Customized support: | Flat End Mill | Flute: | 3, 4, 5, 6, Customize |
| Coating: | Uncoated, Customize | Material: | Tungsten carbide, Customize |
| Precision: | High Precision | Controlling Mode: | CNC |
| HRA: | 89-93.8 | RPM: | <8000RPM |
| Item | AlTiN | TiSiN | Nano | Nano |
| Hardness(HV) | 3200 | 3600 | 42(GPA) | 43(GPA) |
| Thickness(UM) | 2.5-3 | 3 | 3 | 3 |
| Oxidation Temp(°) | 900 | 1000 | 1200 | 1300 |
| Friction Coeffient | 0.3 | 0.45 | 0.4 | 0.45 |
| Material | Carbide, Tungsten carbide |
| Coating | AlCrN |
| Product Name | end milling cutter |
| Application | CNC processing |
| Suitable for | Cast iron, carbon steel, alloy steel, non-ferrous metals, etc. |
| Specification | Tool specifications (mm) |
| Blade diameter | Blade length | Number of Blade | Shank diameter | Full Length |
| D1.0-3L-4F-4D-50L | 1.0 | 3 | 4 | 4 | 50 |
| D1.5-4.5L-4F-4D-50L | 1.5 | 4.5 | 4 | 4 | 50 |
| D2.0-6L-4F-4D-50L | 2.0 | 6 | 4 | 4 | 50 |
| D2.5-7.5L-4F-4D-50L | 2.5 | 7.5 | 4 | 4 | 50 |
| D3.0-9L-4F-3D-50L | 3.0 | 9 | 4 | 3 | 50 |
| D3.0-9L-4F-4D-50L | 3.0 | 9 | 4 | 4 | 50 |
| D3.5-10L-4F-4D-50L | 3.5 | 10 | 4 | 4 | 50 |
| D4-12L-4F-4D-50L | 4.0 | 12 | 4 | 4 | 50 |
| D5-15L-4F-5D-50L | 5.0 | 15 | 4 | 5 | 50 |
| D5-15L-4F-6D-50L | 5.0 | 15 | 4 | 6 | 50 |
| D6-18L-4F-6D-50L | 6.0 | 18 | 4 | 6 | 50 |
| D8-25L-4F-8D-60L | 8.0 | 25 | 4 | 8 | 60 |
| D10-30L-4F-10D-75L | 10 | 30 | 4 | 10 | 75 |
| D12-32L-4F-12D-75L | 12 | 32 | 4 | 12 | 75 |
| D14-40L-4F-14D-100L | 14 | 40 | 4 | 14 | 100 |
| D16-45L-4F-16D-100L | 16 | 45 | 4 | 16 | 100 |
| D18-45L-4F-18D-100L | 18 | 45 | 4 | 18 | 100 |
| D20-48L-4F-20D-100L | 20 | 48 | 4 | 20 | 100 |
| D3-12L-4F-3D-75L | 3.0 | 12 | 4 | 3 | 75 |
| D3-12L-4F-3D-100L | 3.0 | 12 | 4 | 3 | 100 |
| D4-16L-4F-4D-75L | 4.0 | 16 | 4 | 4 | 75 |
| D4-16L-4F-4D-100L | 4.0 | 16 | 4 | 4 | 100 |
| D5-18L-4F-5D-75L | 5.0 | 18 | 4 | 5 | 75 |
| D5-18L-4F-5D-100L | 5.0 | 18 | 4 | 5 | 100 |
| D6-22L-4F-6D-75L | 6.0 | 22 | 4 | 6 | 75 |
| D6-22L-4F-6D-100L | 6.0 | 22 | 4 | 6 | 100 |
| D6-40L-4F-6D-100L | 6.0 | 40 | 4 | 6 | 100 |
| D6-25L-4F-6D-150L | 6.0 | 25 | 4 | 6 | 150 |
| D8-25L-4F-8D-75L | 8.0 | 25 | 4 | 8 | 75 |
| D8-30L-4F-8D-100L | 8.0 | 30 | 4 | 8 | 100 |
| D8-40L-4F-8D-100L | 8.0 | 40 | 4 | 8 | 100 |
| D8-35L-4F-8D-150L | 8.0 | 35 | 4 | 8 | 150 |
| D10-30L-4F-10D-100L | 10 | 30 | 4 | 10 | 100 |
| D10-45L-4F-10D-100L | 10 | 45 | 4 | 10 | 100 |
| D10-50L-4F-10D-100L | 10 | 50 | 4 | 10 | 100 |
| D10-40L-4F-10D-150L | 10 | 40 | 4 | 10 | 150 |
| D12-35L-4F-12D-100L | 12 | 35 | 4 | 12 | 100 |
| D12-50L-4F-12D-100L | 12 | 50 | 4 | 12 | 100 |
| D12-45L-4F-12D-150L | 12 | 45 | 4 | 12 | 150 |
| D14-45L-4F-14D-150L | 14 | 45 | 4 | 14 | 150 |
| D16-50L-4F-16D-150L | 16 | 50 | 4 | 16 | 150 |
| D20-55L-4F-20D-150L | 20 | 55 | 4 | 20 | 150 |
FAQ
1. Who are we?
Sanyinghe is professional cutting tool supplier founded in 2014. Sanyinghe has a excellent teams in designing and manufacturing. Welcome to contact with us, we can meet all your requirement.
2. How can we guarantee quality?
We own optimized design concept advanced testing equipment and strict production process, so we can guarantee quality steadily.
3. What can you buy from us?
We can provide you tungsten carbide end mills, tungsten carbide indexable inserts, cermet (metal ceramic) indexable inserts, tungsten carbide or HSS drills, and milling cutter head, milling cutter arbor, cnc tool holder,and so on.
4. How is the packing?
All the packing will meet the strict export packing requirement, we surely understand how important the beautiful and firm packaging to the goods.
5. What is your terms of payment?
Generally by T/T, Paypal, Western Union. We support EXW, FOB, FCA, CFR, CIF, and DDP Terms.
