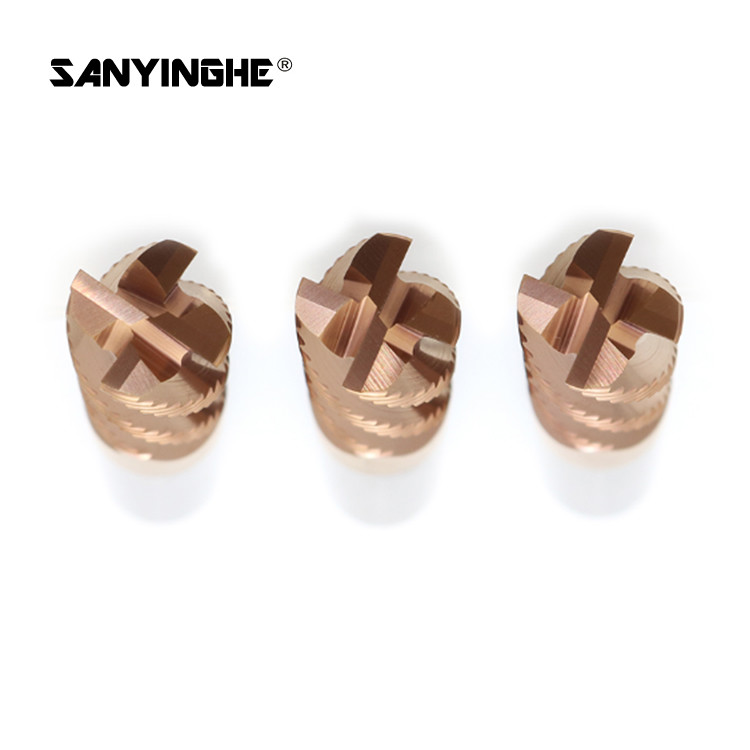

4 Flute Solid Tungsten Carbide Roughing End Mills Square 6mm Cnc Thread Milling Cutter

    Buy cheap 4 Flute Solid Tungsten Carbide Roughing End Mills Square 6mm Cnc Thread Milling Cutter from wholesalers

    Buy cheap 4 Flute Solid Tungsten Carbide Roughing End Mills Square 6mm Cnc Thread Milling Cutter from wholesalers
    • Buy cheap 4 Flute Solid Tungsten Carbide Roughing End Mills Square 6mm Cnc Thread Milling Cutter from wholesalers
    • Buy cheap 4 Flute Solid Tungsten Carbide Roughing End Mills Square 6mm Cnc Thread Milling Cutter from wholesalers
    • Buy cheap 4 Flute Solid Tungsten Carbide Roughing End Mills Square 6mm Cnc Thread Milling Cutter from wholesalers
    • Buy cheap 4 Flute Solid Tungsten Carbide Roughing End Mills Square 6mm Cnc Thread Milling Cutter from wholesalers

    4 Flute Solid Tungsten Carbide Roughing End Mills Square 6mm Cnc Thread Milling Cutter

    Ask Lasest Price
    Brand Name : Sanyinghe
    Model Number : Standard
    Certification : ISO
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 3000pcs/month
    Delivery Time : 7 days
    • Product Details
    • Company Profile

    4 Flute Solid Tungsten Carbide Roughing End Mills Square 6mm Cnc Thread Milling Cutter

    4 Flute Solid Tungsten Carbide Roughing End Milling Cutter Square End Mills 6mm Cnc Thread Milling Cutter

    PRODUCT DESCRIPTION


    1.Fully enables running at rough machining parameters, resulting in finish surface quality.
    2.Excellent performance in machining titanium, stainless steel and high temperature alloys.
    3.The coating provides longer tool-life or increased cutting-values.
    4.Suitable for all types of steel or metal.

    Product Name
    Roughing End mill
    Material
    Tungsten carbide
    Coating
    TiAiN Coating
    Standard

    ISO

    HRC
    45/50/55/60/65
    OEM
    Supply

    Item Grade

    HRC45

    (YG10X )

    HRC55

    (YL10.2 & WF25)

    HRC60

    (Germany K44 &K40)

    HRC65

    (Sandvik H10F)

    Details

    Grain size 0.7um
    Co10%
    Flexural strength
    3320N/mm2

    Grain size 0.6um
    Co10%
    Flexural strength 4000N/mm2

    Grain size 0.5um
    Co12%
    Flexural strength
    4300N/mm2

    Grain size 0.5um
    Co10%
    Flexural strength 4300N/mm2

    Coating Classifying and Advantage

    Item

    Coating Type

    AlTin

    TiAlN

    TiSiN

    Naco


    Characteristic

    Hardness(HV)

    3300

    2800

    4300

    42(GPA)

    Thickness(UM)

    2.5-3

    2.5-3

    3

    3

    Oxidation Temp.(°C)

    900

    800

    1000

    1200

    Friction Coefficient

    0.35

    0.3

    0.25

    0.4

    Color

    Black

    Bronze

    Bronze and gold

    Blue

    Advantages

    High heat stability

    Normally cutting

    Suitable for heavy cutting, and high hardness cutting

    For high precision cutting

    Suitable for high speed, dry cutting

    Suitable for cutting mould steel, stainless
    steel

    Suitable for high hardness cutting, mould steel processing

    Most suitable for carbide cutting tools, turning insert



    Flute Diameter

    (mm)

    Flute Length

    (mm)

    Shank Diameter

    (mm)

    Overall Length

    (mm)

    Flute

    Number

    Processed Material

    (HRC)

    4

    15

    4

    50

    4

    45/55/60HRC

    6

    15

    6

    50

    4

    45/55/60HRC

    8

    20

    8

    60

    4

    45/55/60HRC

    10

    25

    10

    75

    4

    45/55/60HRC

    12

    30

    12

    75

    4

    45/55/60HRC

    14

    35

    14

    100

    4

    45/55/60HRC

    16

    40

    16

    100

    4

    45/55/60HRC

    18

    45

    18

    100

    4

    45/55/60HRC

    20

    50

    20

    100

    4

    45/55/60HRC


    4 Flute Solid Tungsten Carbide Roughing End Mills Square 6mm Cnc Thread Milling Cutter4 Flute Solid Tungsten Carbide Roughing End Mills Square 6mm Cnc Thread Milling Cutter4 Flute Solid Tungsten Carbide Roughing End Mills Square 6mm Cnc Thread Milling Cutter

    FAQ


    1. Who are we?

    Sanyinghe is professional cutting tool supplier founded in 2014. Sanyinghe has a excellent teams in designing and manufacturing. Welcome to contact with us, we can meet all your requirement.


    2. How can we guarantee quality?

    We own optimized design concept advanced testing equipment and strict production process, so we can guarantee quality steadily.


    3. What can you buy from us?

    We can provide you tungsten carbide end mills, tungsten carbide indexable inserts, cermet (metal ceramic) indexable inserts, tungsten carbide or HSS drills, and milling cutter head, milling cutter arbor, cnc tool holder,and so on.


    4. How is the packing?

    All the packing will meet the strict export packing requirement, we surely understand how important the beautiful and firm packaging to the goods.


    5. What is your terms of payment?


    Generally by T/T, Paypal, Western Union. We support EXW, FOB, FCA, CFR, CIF, and DDP Terms.
