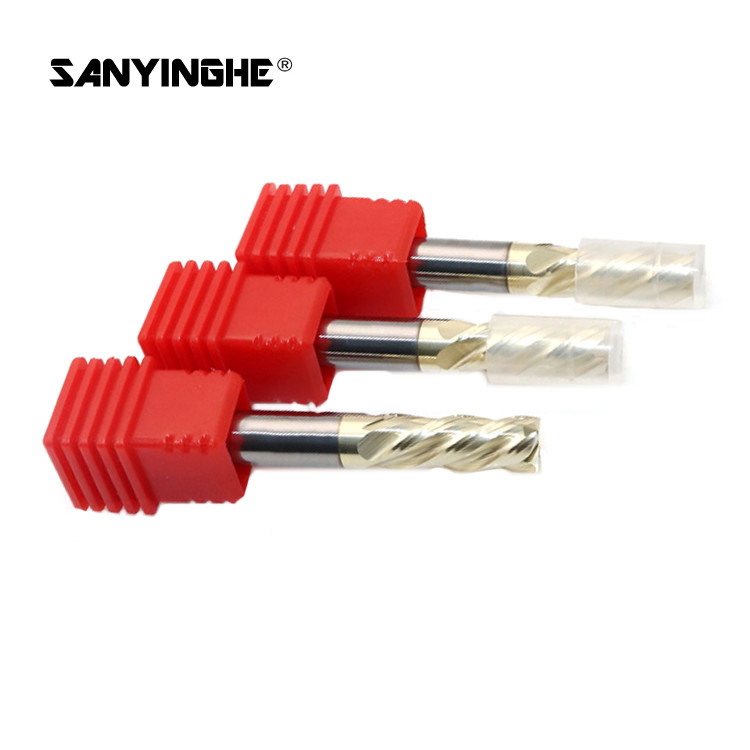

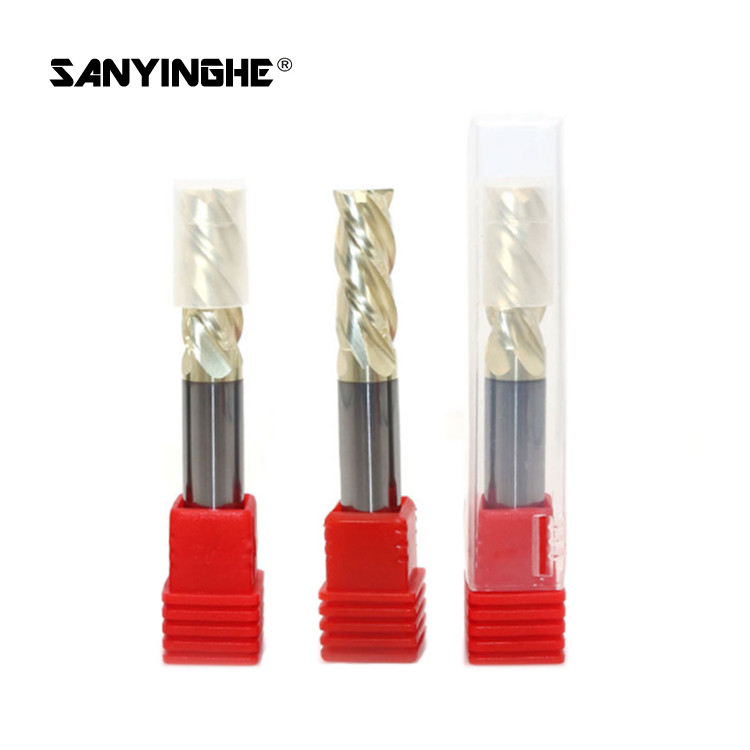

8mm Square End Mills Cnc Tool Solid Tungsten Carbide End Milling
Cutter For Stainless Steel Milling
PRODUCT DESCRIPTION
- Material: Solid Carbide
- Type: Flat/Square Nose End Mill
- Helix Angle: 35
- Flutes: 2/4/6
- Centered Cutting: Yes
- Workpiece Material: Steel, mould steel, low alloy, non-treated
steel
- Process Type: semi-finish,finish
- Application: Copy milling
- Cutting Condition: Dry, Wet
Fearture:
1. Made in high quality tungsten carbide material;
2. Made by full grinding process;
3. Precise dimension, high accuracy;
4. 100% inspection;
5. Special design for perfect cutting performance and effciency;
6. Super long tool life;
7. Customized tool design, marking, packing are available.
Product Name | Carbide End Mills |
| Material | Carbide |
| Coating | AITiN |
| Color | Copper Color |
| Processing Objects | Carbon Steel |
| Features | Suitable for processing ordinary steel andcastiron materials. |
2/4 Flute end mill
| Outside Diameter(D) | Shank Diameter(d) | Flute Length(l) | Overall Length(L) |
| 1.0 | 4 | 3 | 50 |
| 1.5 | 4 | 4.5 | 50 |
| 2.0 | 4 | 6 | 50 |
| 2.5 | 4 | 7 | 50 |
| 3.0 | 4 | 8 | 50 |
| 4.0 | 4 | 11 | 50 |
| 5.0 | 6 | 13 | 50 |
| 6.0 | 6 | 15 | 50 |
| 7.0 | 8 | 18 | 60 |
| 8.0 | 8 | 20 | 60 |
| 9.0 | 10 | 23 | 75 |
| 10.0 | 10 | 25 | 75 |
| 11.0 | 12 | 28 | 75 |
| 12.0 | 12 | 30 | 75 |
| 16.0 | 16 | 40 | 100 |
| 20.0 | 20 | 40 | 100 |
Long length 2/4 flute end mill
| Outside Diameter(D) | Shank Diameter(d) | Flute Length(l) | Overall Length(L) |
| 3.0 | 6 | 12 | 75 |
| 4.0 | 6 | 16 | 75 |
| 5.0 | 6 | 20 | 75 |
| 6.0 | 6 | 25 | 75 |
| 8.0 | 8 | 30 | 75 |
| 3.0 | 6 | 15 | 100 |
| 4.0 | 6 | 20 | 100 |
| 5.0 | 6 | 25 | 100 |
| 6.0 | 6 | 30 | 100 |
| 8.0 | 8 | 35 | 100 |
| 10.0 | 10 | 40 | 100 |
| 12.0 | 12 | 45 | 100 |
| 8.0 | 8 | 40 | 150 |
| 10.0 | 10 | 50 | 150 |
| 12.0 | 12 | 50 | 150 |
| 16.0 | 16 | 70 | 150 |
| 20.0 | 20 | 80 | 150 |
FAQ
1. Who are we?
Sanyinghe is professional cutting tool supplier founded in 2014.
Sanyinghe has a excellent teams in designing and manufacturing.
Welcome to contact with us, we can meet all your requirement.
2. How can we guarantee quality?
We own optimized design concept advanced testing equipment and
strict production process, so we can guarantee quality steadily.
3. What can you buy from us?
We can provide you tungsten carbide end mills, tungsten carbide
indexable inserts, cermet (metal ceramic) indexable inserts,
tungsten carbide or HSS drills, and milling cutter head, milling
cutter arbor, cnc tool holder,and so on.
4. How is the packing?
All the packing will meet the strict export packing requirement, we
surely understand how important the beautiful and firm packaging to
the goods.
5. What is your terms of payment?
Generally by T/T, Paypal, Western Union. We support EXW, FOB, FCA,
CFR, CIF, and DDP Terms.
