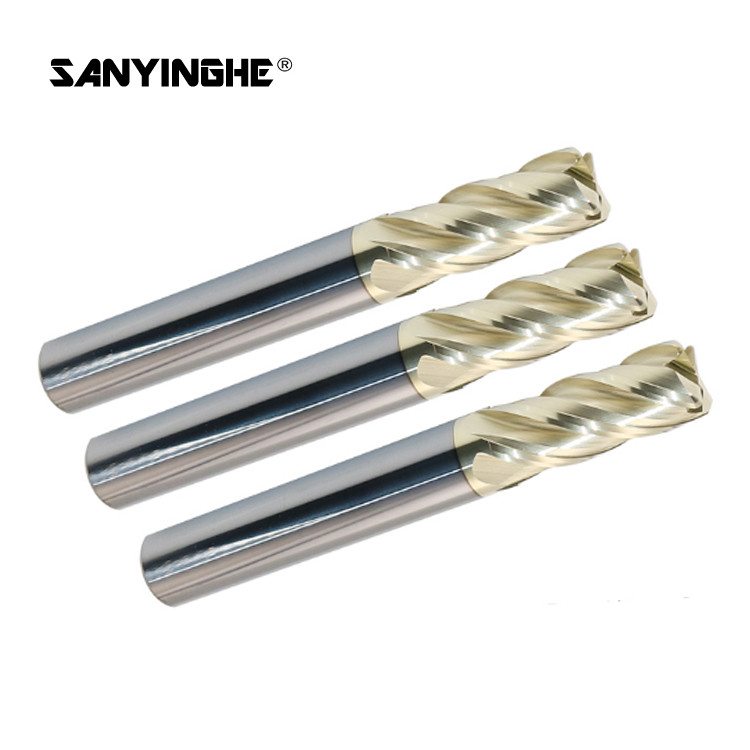

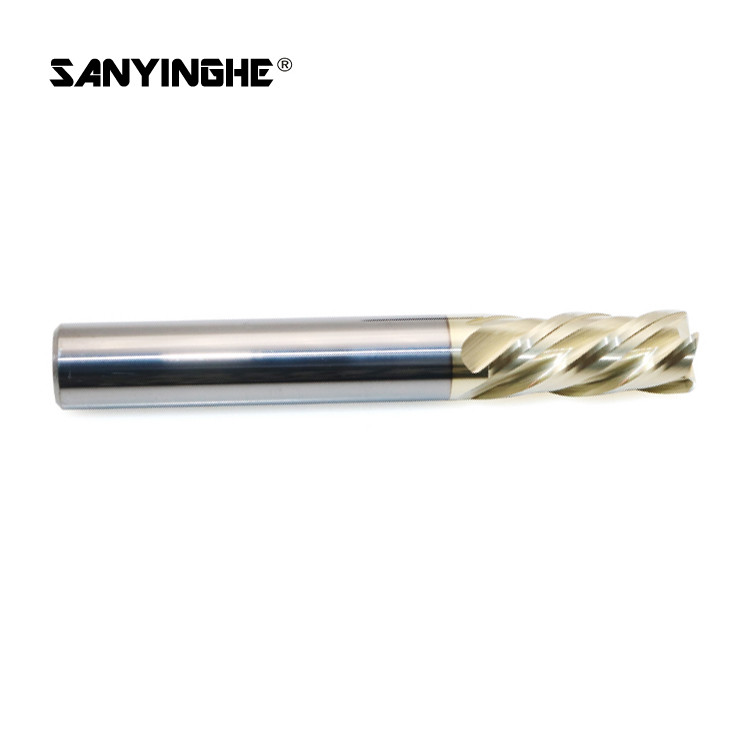

Corner Radius Milling Cutter End Mill Solid Carbide Cnc Milling Machining Tool For High Speed Cutting Steel
PRODUCT DESCRIPTION
1. Surface TISIN Coatedl
2. Strength2500-4000N/mm2 Controling ModeCNC
3. UsageMetal Chemical Composition6%-12%Co-WC
4. Density14.45-14.90g/cm3
5. Chemical Composition: 10%Co-Wc
6. Raw Material: Super Micro grain with Diameter less than 0.2UM
7. International Industrial Standard: K10, K05-K15, K20-K30, K20-K40
8. Application areas: Machining of cast iron, nonferrous alloy,chill cast iron,hard steel,stainless steel,plastic materials,fiberglass,carbon fiber and other non-metallic.
9. Served industries: Aerospace,Transportation, Medical Equipment,Military Manufacturing,Mold Development,etc.
| Material | Tungsten carbide |
| Coating | AITiN or as you request |
| Hardness(HV) | 1475~1675 |
| Hardness(HRC) | 45/50/55/60/65 |
| Size | Dia:1-25mm,Overal Length:50-250mm |
| Smooth Finish | Highly Polished |
| Product Name | Solid Carbide Corner radius endmill |
| Material | Tungsten Carbide,Solid Carbide,Cemented Carbide |
| HRC | 45/55/60/65 |
| Product Type | Solid Carbide Corner radius endmill |
| Coating | Altin, Tialn, Tisin, Tin, DLC,Nano, Diamond |
| Helix Angle | 10degree,15degree,25degree,35degree,45degree,55degree |
| Size | Metric & Inch Size Based On Your Requirement |
| Tolerance | OEM |
| Suitable For | Steel, Stainless Steel, Die Steel, Mould Steel, Carbon Steel, Cast Iron, Copper, etc.
A3,S45C,S50C,40Cr,42CrMO,20CR,Cr12,H13,NAK80,718 |
| Corner Radius End Mill | Specification-R0.2 | Flute |
| 1 | D1R0.2*3*D4*50L | 4 |
| 2 | D1.5R0.2*4.5*D4*50L | 4 |
| 3 | D2R0.2*6*D4*50L | 4 |
| 4 | D2.5R0.2*7.5*D4*50L | 4 |
| 5 | D3R0.2*9*D4*50L | 4 |
| 6 | D4R0.2*12*D4*50L | 4 |
| 7 | D6R0.2*15*D6*50L | 4 |
| 8 | D8R0.2*20*D8*60L | 4 |
| Corner Radius End Mill | Specification-R0.5 | Flute |
| 1 | D2R0.5*6*D4*50L | 4 |
| 2 | D2.5R0.5*7.5*D4*50L | 4 |
| 3 | D3R0.5*9*D4*50L | 4 |
| 4 | D3.5R0.5*10.5*D4*50L | 4 |
| 5 | D4R0.5*12*D4*50L | 4 |
| 6 | D4R0.5*14*D4*75L | 4 |
| 7 | D4R0.5*16*D4*100L | 4 |
| 8 | D5R0.5*12.5*D5*50L | 4 |
| 9 | D6R0.5*15*D6*50L | 4 |
| 10 | D6R0.5*20*D6*75L | 4 |
| 11 | D6R0.5*25*D6*100L | 4 |
| 12 | D8R0.5*20*D8*60L | 4 |
| 13 | D8R0.5*25*D8*75L | 4 |
| 14 | D8R0.5*30*D8*100L | 4 |
| 15 | D10R0.5*25*D10*75L | 4 |
| 16 | D10R0.5*30*D10*100L | 4 |
| 17 | D12R0.5*30*D12*75L | 4 |
| 18 | D12R0.5*35*D12*100L | 4 |
| Corner Radius End Mill | Specification-R1 | Flute |
| 1 | D3R1*9*D4*50L | 4 |
| 2 | D3R1*9*D3*50L | 4 |
| 3 | D4R1*12*D4*50L | 4 |
| 4 | D4R1*14*D4*75L | 4 |
| 5 | D4R1*16*D4*100L | 4 |
| 6 | D5R1*12.5*D5*50L | 4 |
| 7 | D5R1*15*D5*75L | 4 |
| 8 | D5R1*12.5*D6*50L | 4 |
| 9 | D6R1*15*D6*50L | 4 |
| 10 | D6R1*20*D6*75L | 4 |
| 11 | D6R1*25*D6*100L | 4 |
| 12 | D8R1*20*D8*60L | 4 |
| 13 | D8R1*25*D8*75L | 4 |
| 14 | D8R1*30*D8*100L | 4 |
| 15 | D10R1*25*D10*75L | 4 |
| 16 | D10R1*30*D10*100L | 4 |
| 17 | D12R1*30*D12*75L | 4 |
| 19 | D12R1*35*D12*100L | 4 |
| Corner Radius End Mill | Specification-R2 | Flute |
| 1 | D8R2*20*D8*60L | 4 |
| 2 | D10R2*25*D10*75L | 4 |
| 3 | D12R2*30*D12*75L | 4 |
FAQ
1. Who are we?
Sanyinghe is professional cutting tool supplier founded in 2014. Sanyinghe has a excellent teams in designing and manufacturing. Welcome to contact with us, we can meet all your requirement.
2. How can we guarantee quality?
We own optimized design concept advanced testing equipment and strict production process, so we can guarantee quality steadily.
3. What can you buy from us?
We can provide you tungsten carbide end mills, tungsten carbide indexable inserts, cermet (metal ceramic) indexable inserts, tungsten carbide or HSS drills, and milling cutter head, milling cutter arbor, cnc tool holder,and so on.
4. How is the packing?
All the packing will meet the strict export packing requirement, we surely understand how important the beautiful and firm packaging to the goods.
5. What is your terms of payment?
Generally by T/T, Paypal, Western Union. We support EXW, FOB, FCA, CFR, CIF, and DDP Terms.
