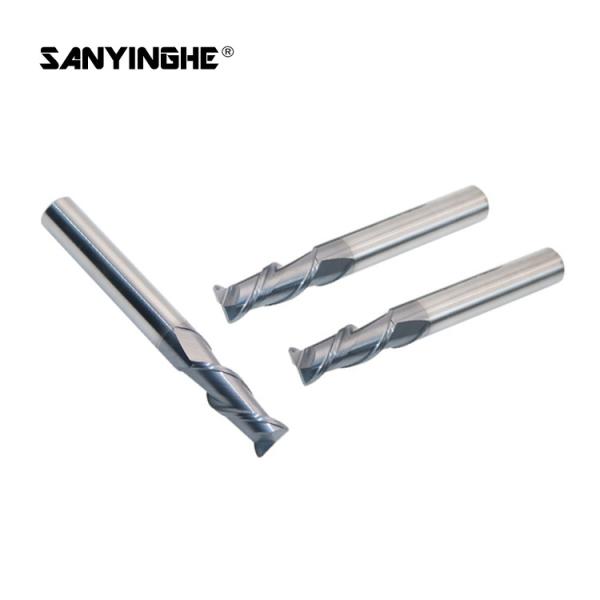

2 Flute Corner Radius End Mill HRC65 8mm Solid Carbide Cutting Tools Milling Cutter For Stainless Steel
PRODUCT DESCRIPTION
| Product Name | Carbide End Mills |
| Material | Carbide |
| Coating | AITiN |
| Type | Corner radius carbide end mills |
| Processing Objects | Carbon Steel |
| Features | End mill for iron, steel, stainless steel, aluminum |
1.End mills application: cutting of stainless steel, cast iron, aluminum, nickel, steel
2.End mills: 2 flutes, 3 flutes, 4 flutes
3.Types: solid carbide end mills, corner radius end mils, ball nose end mills
4.End mill length: 50mm, 85mm, 100mm, 150mm, 200mm
5.End mill hardness:45HRC 55HRC6 5HRC
| Item Grade | HRC45 (YG10X ) | HRC55 (YL10.2 & WF25) | HRC60 (Germany K44 &K40) | HRC65 (Sandvik H10F) |
| Details | Grain size 0.7um Co10%
Flexural strength 3320N/mm2 | Grain size 0.6um
Co10% Flexural strength 4000N/mm2 | Grain size 0.5um Co12%
Flexural strength
4300N/mm2 | Grain size 0.5um
Co10% Flexural strength 4300N/mm2 |
| Corner Radius End Mill | Specification-R0.2 | Flute |
| 1 | D1R0.2*3*D4*50L | 4 |
| 2 | D1.5R0.2*4.5*D4*50L | 4 |
| 3 | D2R0.2*6*D4*50L | 4 |
| 4 | D2.5R0.2*7.5*D4*50L | 4 |
| 5 | D3R0.2*9*D4*50L | 4 |
| 6 | D4R0.2*12*D4*50L | 4 |
| 7 | D6R0.2*15*D6*50L | 4 |
| 8 | D8R0.2*20*D8*60L | 4 |
| Corner Radius End Mill | Specification-R0.5 | Flute |
| 1 | D2R0.5*6*D4*50L | 4 |
| 2 | D2.5R0.5*7.5*D4*50L | 4 |
| 3 | D3R0.5*9*D4*50L | 4 |
| 4 | D3.5R0.5*10.5*D4*50L | 4 |
| 5 | D4R0.5*12*D4*50L | 4 |
| 6 | D4R0.5*14*D4*75L | 4 |
| 7 | D4R0.5*16*D4*100L | 4 |
| 8 | D5R0.5*12.5*D5*50L | 4 |
| 9 | D6R0.5*15*D6*50L | 4 |
| 10 | D6R0.5*20*D6*75L | 4 |
| 11 | D6R0.5*25*D6*100L | 4 |
| 12 | D8R0.5*20*D8*60L | 4 |
| 13 | D8R0.5*25*D8*75L | 4 |
| 14 | D8R0.5*30*D8*100L | 4 |
| 15 | D10R0.5*25*D10*75L | 4 |
| 16 | D10R0.5*30*D10*100L | 4 |
| 17 | D12R0.5*30*D12*75L | 4 |
| 18 | D12R0.5*35*D12*100L | 4 |
| Corner Radius End Mill | Specification-R1 | Flute |
| 1 | D3R1*9*D4*50L | 4 |
| 2 | D3R1*9*D3*50L | 4 |
| 3 | D4R1*12*D4*50L | 4 |
| 4 | D4R1*14*D4*75L | 4 |
| 5 | D4R1*16*D4*100L | 4 |
| 6 | D5R1*12.5*D5*50L | 4 |
| 7 | D5R1*15*D5*75L | 4 |
| 8 | D5R1*12.5*D6*50L | 4 |
| 9 | D6R1*15*D6*50L | 4 |
| 10 | D6R1*20*D6*75L | 4 |
| 11 | D6R1*25*D6*100L | 4 |
| 12 | D8R1*20*D8*60L | 4 |
| 13 | D8R1*25*D8*75L | 4 |
| 14 | D8R1*30*D8*100L | 4 |
| 15 | D10R1*25*D10*75L | 4 |
| 16 | D10R1*30*D10*100L | 4 |
| 17 | D12R1*30*D12*75L | 4 |
| 19 | D12R1*35*D12*100L | 4 |
| Corner Radius End Mill | Specification-R2 | Flute |
| 1 | D8R2*20*D8*60L | 4 |
| 2 | D10R2*25*D10*75L | 4 |
| 3 | D12R2*30*D12*75L | 4 |
